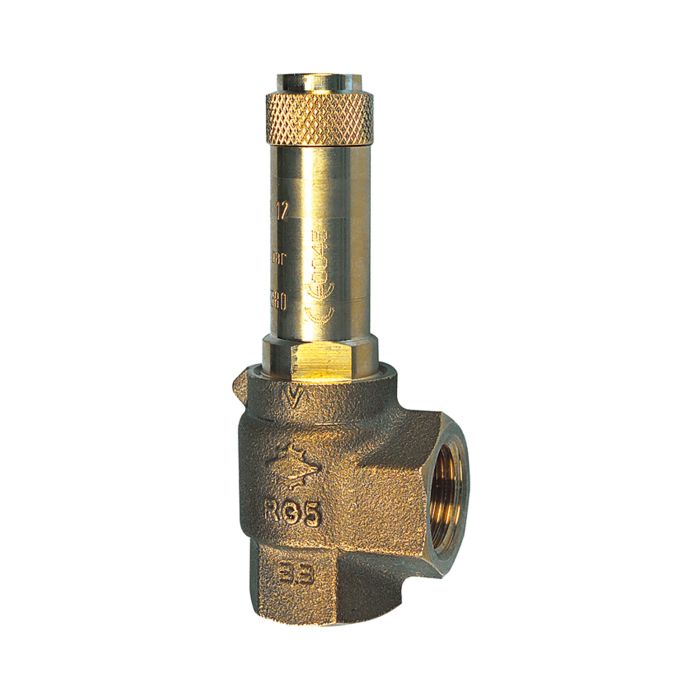

Corner safety valve, G 3/4, Trigger pressure 0.5 bar
(List price: €87.14)
€87.14
List price:
€87.14 / piece
Your price:
€87.14 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
105462
Customer product code
Type Number
222.04-0,5
Article name from customer
EAN-Code
4047322040013
Corner safety valve, for saturated steam, Red brass, Operating temp. -10 to 150 ... More
You can see the exact availability after logging in
List price:
€87.14 / piece
Your price:
€87.14 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata
Corner safety valve, for saturated steam, Red brass, Operating temp. -10 to 150 °C, G 3/4, AF 32, Trigger pressure 0.5 bar
Type-tested, TÜV – SV. 749 D/G
Article No.
105462
Diaphragms
EPDM
Spring bonnet
Brass
Internal parts
brass
Adjustment range
0.2 - 20 bar (depending on size and medium)
Min. operating temperature
-10 °C
Max. operating temperature
150 °C
Spring
C steel
Inlet and outlet
Each with female thread type G acc. to DIN EN ISO 228-1
Operating temperature
-10 °C to 150 °C (EPDM) 225 °C (PTFE)
Thread
G 3/4
a/f
32 mm
Adjustment range min.
0.2 bar
Min. set pressure
0.5 bar
H
111.0 mm
L1
30.0 mm
L2
25.0 mm
Adjustment range max.
20 bar
Class name
FLEX
Customs tariff number
84814090
Downloads
Variants
| Art. No. | Type No. | Attributes | Adjustment range min. | Min. set pressure | Adjustment range max. | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 105460 | 222.04-0,2 | 0.2 | 0.2 | 20 | You can see the exact availability after logging in | €87.14 List price: €87.14 / piece Your price: €87.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 172936 | 222.04-0,3 | 0.2 | 0.3 | 20 | You can see the exact availability after logging in | €87.14 List price: €87.14 / piece Your price: €87.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105461 | 222.04-0,4 | 0.2 | 0.4 | 20 | You can see the exact availability after logging in | €87.14 List price: €87.14 / piece Your price: €87.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105463 | 222.04-0,6 | 0.2 | 0.6 | 20 | You can see the exact availability after logging in | €87.14 List price: €87.14 / piece Your price: €87.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105464 | 222.04-0,9 | 0.2 | 0.9 | 20 | You can see the exact availability after logging in | €87.14 List price: €87.14 / piece Your price: €87.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105465 | 222.04-1,0 | 0.2 | 1 | 20 | You can see the exact availability after logging in | €87.14 List price: €87.14 / piece Your price: €87.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105466 | 222.04-1,5 | 0.2 | 1.5 | 20 | You can see the exact availability after logging in | €87.14 List price: €87.14 / piece Your price: €87.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105467 | 222.04-1,7 | 0.2 | 1.7 | 20 | You can see the exact availability after logging in | €87.14 List price: €87.14 / piece Your price: €87.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
