Corner safety valve, liquids, G 1 1/2, Trigger pressure 15 bar
(List price: €305.48)
€305.48
List price:
€305.48 / piece
Your price:
€305.48 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
105635
Customer product code
Type Number
221.07-15,0
Article name from customer
EAN-Code
4047322360340
Corner safety valve, for liquids, Red brass, FPM, Operating temp. -10 °C to 110 ... More
You can see the exact availability after logging in
List price:
€305.48 / piece
Your price:
€305.48 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata

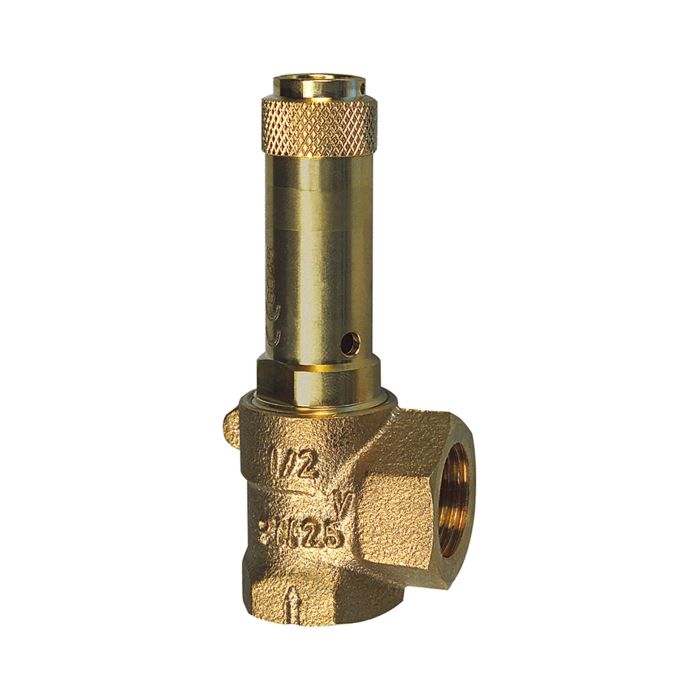

Corner safety valve, for liquids, Red brass, FPM, Operating temp. -10 °C to 110 °C, G 1 1/2, AF 58, Trigger pressure 15 bar
For non-toxic, non-flammable liquids.
No evaporation allowed when blowing off.
With diaphragm to protect the spring and with lifting device.
Type-tested, TÜV-SV. 749. F
Article No.
105635
Diaphragms
FPM
Spring bonnet
Brass
Internal parts
brass
Adjustment range
1 - 16 bar (depending on the seal)
Min. operating temperature
-10 °C
Max. operating temperature
110 °C
Spring
C steel
Inlet and outlet
Each with female thread type G acc. to DIN EN ISO 228-1
Thread
G 1 1/2
a/f
58 mm
Adjustment range min.
1 bar
Min. set pressure
15 bar
H
175.0 mm
L1
48.0 mm
L2
40.0 mm
Adjustment range max.
16 bar
Class name
FLEX
Customs tariff number
84814090
Downloads
Variants
| Art. No. | Type No. | Attributes | Adjustment range min. | Min. set pressure | Adjustment range max. | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 105625 | 221.07-2,0 | 1 | 2 | 10 | You can see the exact availability after logging in | €305.48 List price: €305.48 / piece Your price: €305.48 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105626 | 221.07-3,0 | 1 | 3 | 10 | You can see the exact availability after logging in | €305.48 List price: €305.48 / piece Your price: €305.48 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 130814 | 221.07-3,5 | 1 | 3.5 | 10 | You can see the exact availability after logging in | €305.48 List price: €305.48 / piece Your price: €305.48 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105627 | 221.07-4,0 | 1 | 4 | 10 | You can see the exact availability after logging in | €305.48 List price: €305.48 / piece Your price: €305.48 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105628 | 221.07-5,0 | 1 | 5 | 10 | You can see the exact availability after logging in | €305.48 List price: €305.48 / piece Your price: €305.48 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105629 | 221.07-5,5 | 1 | 5.5 | 10 | You can see the exact availability after logging in | €305.48 List price: €305.48 / piece Your price: €305.48 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105630 | 221.07-6,0 | 1 | 6 | 10 | You can see the exact availability after logging in | €305.48 List price: €305.48 / piece Your price: €305.48 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105631 | 221.07-7,0 | 1 | 7 | 10 | You can see the exact availability after logging in | €305.48 List price: €305.48 / piece Your price: €305.48 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
