Corner safety valve, liquids, G 1, Trigger pressure 6.5 bar
(List price: €127.64)
€127.64
List price:
€127.64 / piece
Your price:
€127.64 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
105593
Customer product code
Type Number
221.05-6,5
Article name from customer
EAN-Code
4047322235051
Corner safety valve, for liquids, Red brass, NBR, Operating temp. -10 °C to 110 ... More
You can see the exact availability after logging in
List price:
€127.64 / piece
Your price:
€127.64 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata

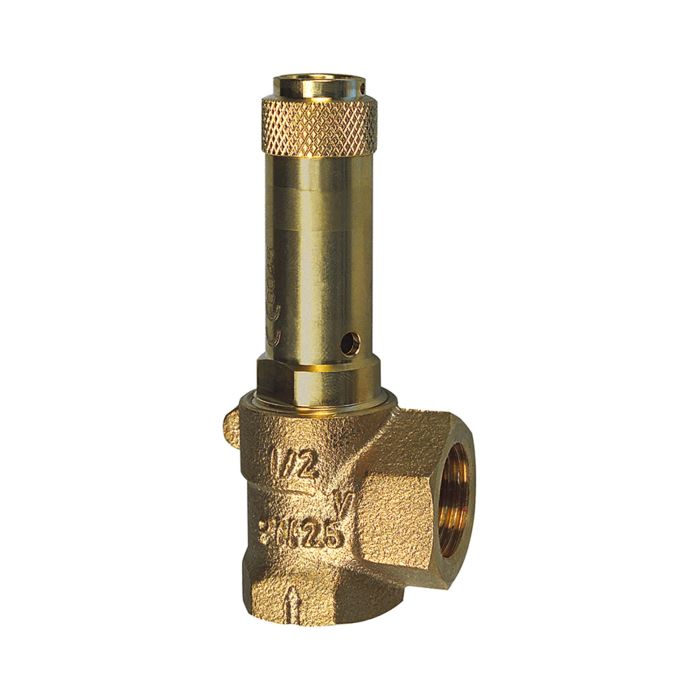

Corner safety valve, for liquids, Red brass, NBR, Operating temp. -10 °C to 110 °C, G 1, AF 41, Trigger pressure 6.5 bar
For non-toxic, non-flammable liquids.
No evaporation allowed when blowing off.
With diaphragm to protect the spring and with lifting device.
Type-tested, TÜV-SV. 749. F
Article No.
105593
Diaphragms
NBR
Spring bonnet
Brass
Internal parts
brass
Adjustment range
1 - 16 bar (depending on the seal)
Min. operating temperature
-10 °C
Max. operating temperature
110 °C
Spring
C steel
Inlet and outlet
Each with female thread type G acc. to DIN EN ISO 228-1
Thread
G 1
a/f
41 mm
Adjustment range min.
1 bar
Min. set pressure
6.5 bar
H
132.0 mm
L1
36.0 mm
L2
30.0 mm
Adjustment range max.
10 bar
Class name
FLEX
Customs tariff number
84814090
Downloads
Variants
| Art. No. | Type No. | Attributes | Adjustment range min. | Min. set pressure | Adjustment range max. | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 105580 | 221.05-1,0 | 1 | 1 | 10 | You can see the exact availability after logging in | €127.64 List price: €127.64 / piece Your price: €127.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105581 | 221.05-1,1 | 1 | 1.1 | 10 | You can see the exact availability after logging in | €127.64 List price: €127.64 / piece Your price: €127.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105582 | 221.05-1,5 | 1 | 1.5 | 10 | You can see the exact availability after logging in | €127.64 List price: €127.64 / piece Your price: €127.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 117633 | 221.05-1,6 | 1 | 1.6 | 10 | You can see the exact availability after logging in | €127.64 List price: €127.64 / piece Your price: €127.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105583 | 221.05-1,8 | 1 | 1.8 | 10 | You can see the exact availability after logging in | €127.64 List price: €127.64 / piece Your price: €127.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105584 | 221.05-2,0 | 1 | 2 | 10 | You can see the exact availability after logging in | €127.64 List price: €127.64 / piece Your price: €127.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105585 | 221.05-2,5 | 1 | 2.5 | 10 | You can see the exact availability after logging in | €127.64 List price: €127.64 / piece Your price: €127.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105586 | 221.05-3,0 | 1 | 3 | 10 | You can see the exact availability after logging in | €127.64 List price: €127.64 / piece Your price: €127.64 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
