Corner safety valve, liquids, G 2, Trigger pressure 3 bar
(List price: €403.50)
€403.50
List price:
€403.50 / piece
Your price:
€403.50 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
excl. VAT and shipping
You can see the exact availability after logging in
In stock
SKU
105641
Customer product code
Type Number
221.08-3,0
Article name from customer
EAN-Code
4047322039758
Corner safety valve, for liquids, Red brass, NBR, Operating temp. -10 °C to 110 ... More
You can see the exact availability after logging in
List price:
€403.50 / piece
Your price:
€403.50 / piece
ERP-Info
Scale of prices
Quantity
Price
/
Sales info
Price unit:
1
Quantity unit:
piece
Content:
1 piece
Productdata

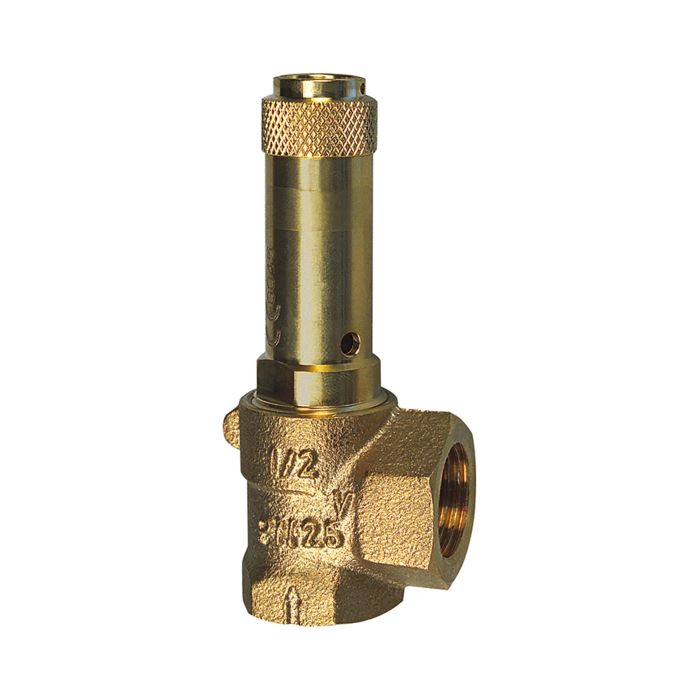

Corner safety valve, for liquids, Red brass, NBR, Operating temp. -10 °C to 110 °C, G 2, AF 70, Trigger pressure 3 bar
For non-toxic, non-flammable liquids.
No evaporation allowed when blowing off.
With diaphragm to protect the spring and with lifting device.
Type-tested, TÜV-SV. 749. F
Article No.
105641
Diaphragms
NBR
Spring bonnet
Brass
Internal parts
brass
Adjustment range
1 - 16 bar (depending on the seal)
Min. operating temperature
-10 °C
Max. operating temperature
110 °C
Spring
C steel
Inlet and outlet
Each with female thread type G acc. to DIN EN ISO 228-1
Thread
G 2
a/f
70 mm
Adjustment range min.
1 bar
Min. set pressure
3 bar
H
200.0 mm
L1
56.0 mm
L2
48.0 mm
Adjustment range max.
10 bar
Class name
FLEX
Customs tariff number
84814090
Downloads
Variants
| Art. No. | Type No. | Attributes | Adjustment range min. | Min. set pressure | Adjustment range max. | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|
| 105637 | 221.08-1,0 | 1 | 1 | 10 | You can see the exact availability after logging in | €403.50 List price: €403.50 / piece Your price: €403.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 137686 | 221.08-1,5 | 1 | 1.5 | 10 | You can see the exact availability after logging in | €403.50 List price: €403.50 / piece Your price: €403.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 151278 | 221.08-1,6 | 1 | 1.6 | 10 | You can see the exact availability after logging in | €403.50 List price: €403.50 / piece Your price: €403.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105638 | 221.08-1,7 | 1 | 1.7 | 10 | You can see the exact availability after logging in | €403.50 List price: €403.50 / piece Your price: €403.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105639 | 221.08-2,0 | 1 | 2 | 10 | You can see the exact availability after logging in | €403.50 List price: €403.50 / piece Your price: €403.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105640 | 221.08-2,5 | 1 | 2.5 | 10 | You can see the exact availability after logging in | €403.50 List price: €403.50 / piece Your price: €403.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 151763 | 221.08-2,9 | 1 | 2.9 | 10 | You can see the exact availability after logging in | €403.50 List price: €403.50 / piece Your price: €403.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in | ||
| 105642 | 221.08-3,5 | 1 | 3.5 | 10 | You can see the exact availability after logging in | €403.50 List price: €403.50 / piece Your price: €403.50 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece excl. VAT and shipping You can see the exact availability after logging in |
