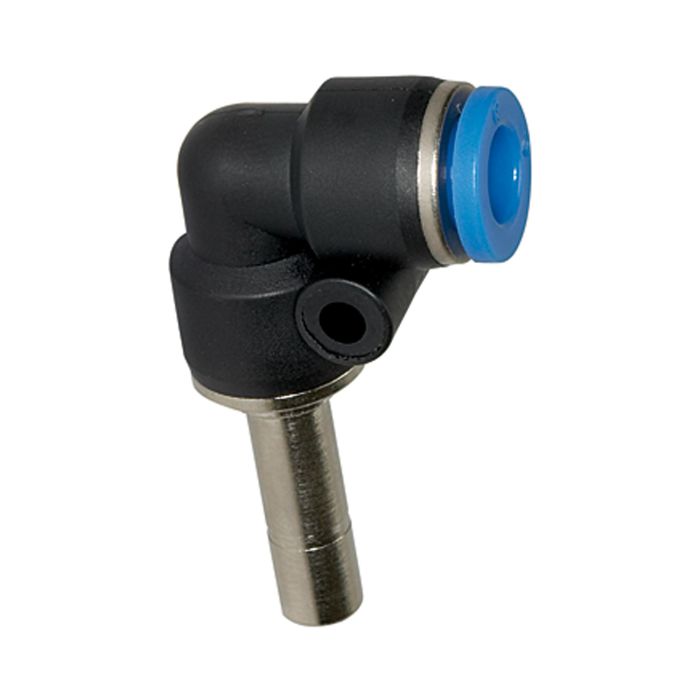

Push-in L-connector, Plug nipple 6 mm »Blue Series« hose Ø 6 mm
In stock
SKU
109890
Customer product code
Type Number
157.0606
Article name from customer
EAN-Code
4047322197625
Push-in L-connector, Plug nipple 6 mm »Blue Series«, for hose exterior Ø 6 mm, p... More
Productdata
Push-in L-connector, Plug nipple 6 mm »Blue Series«, for hose exterior Ø 6 mm, pmax short term 15 bar
Push-in fittings series manufactured in plastic and nickel-plated brass.
All parts are suitable for use with hoses, tubes or pipes made of plastic.
Article No.
109890
Min. temperature range
-20 °C
Max. temperature range
80 °C
Medium
compressed air
Sealant
NBR
Series
Blue series
Min. working pressure
-0.95 bar
Max. working pressure
10 bar
Max. working pressure short term
15 bar
Material
plastic and nickel-plated brass
Applications
Compressed air systems, automotive,packaging industry,vacuum
Sleeve
Plastic
Recommended hose
PU, PA (nylon)
for tube O.D.
6 mm
L1
18.7 mm
L2
36.2 mm
Class name
EASY
Customs tariff number
39174000
Plug connection
6 mm
