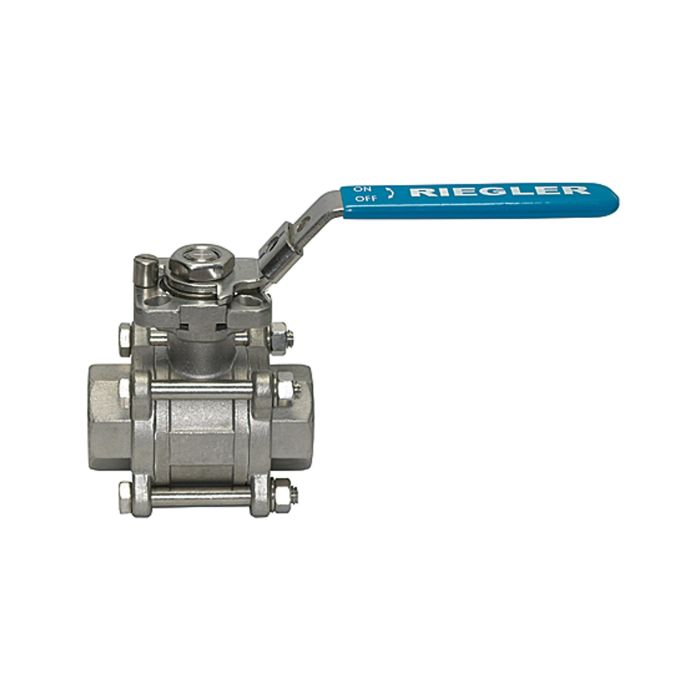

Stainless steel ball valve, Thread design, Full passage, G 3/4
In stock
SKU
103450
Customer product code
Type Number
390.04
Article name from customer
EAN-Code
4047322081528
Stainless steel ball valve 1.4401/1.4408, Thread design, Full passage, Operating... More
Productdata
Stainless steel ball valve 1.4401/1.4408, Thread design, Full passage, Operating temp. max. 160 °C, G 3/4, DN 20, PN max. 63 bar
Article No.
103450
Hand lever
stainless steel 1.4301
DN
20
Standard thread
G-thread acc. to DIN EN ISO 228-1, flange plate (ISO 5211)
A
123.0 mm
B
78.0 mm
L
73.0 mm
Sealant
15 % RPTFE (glass fibre reinforced PTFE)
Material
stainless steel 1.4401 / 1.4408
Downloads
Variants
| Art. No. | Type No. | Attributes | Sealant | Thread | DN | Standard thread | Availability | Price | Options |
|---|---|---|---|---|---|---|---|---|---|
| 103447 | 390.01 | 15 % RPTFE (glass fibre reinforced PTFE) | G 1/4 | 8 | G-thread acc. to DIN EN ISO 228-1, flange plate (ISO 5211) | ||||
| 103448 | 390.02 | 15 % RPTFE (glass fibre reinforced PTFE) | G 3/8 | 10 | G-thread acc. to DIN EN ISO 228-1, flange plate (ISO 5211) | ||||
| 103449 | 390.03 | 15 % RPTFE (glass fibre reinforced PTFE) | G 1/2 | 15 | G-thread acc. to DIN EN ISO 228-1, flange plate (ISO 5211) | ||||
| 103451 | 390.05 | 15 % RPTFE (glass fibre reinforced PTFE) | G 1 | 25 | G-thread acc. to DIN EN ISO 228-1, flange plate (ISO 5211) | ||||
| 103452 | 390.06 | 15 % RPTFE (glass fibre reinforced PTFE) | G 1 1/4 | 32 | G-thread acc. to DIN EN ISO 228-1, flange plate (ISO 5211) | ||||
| 103453 | 390.07 | 15 % RPTFE (glass fibre reinforced PTFE) | G 1 1/2 | 40 | G-thread acc. to DIN EN ISO 228-1, flange plate (ISO 5211) | ||||
| 103454 | 390.08 | 15 % RPTFE (glass fibre reinforced PTFE) | G 2 | 50 | G-thread acc. to DIN EN ISO 228-1, flange plate (ISO 5211) | ||||
