Standard cylinder, double-acting, Piston Ø 32, Stroke 175, G 1/8

(List price: €82.95)

€82.95

(€82.95 / piece)

excl. VAT and shipping

In stock

SKU

170580

Type Number

16.DMD.32175

EAN-Code

4047322653022

Standard cylinder SAI, ISO 15552, double-acting, Piston Ø 32, Stroke 175, G 1/8,... More

(€82.95 / piece)

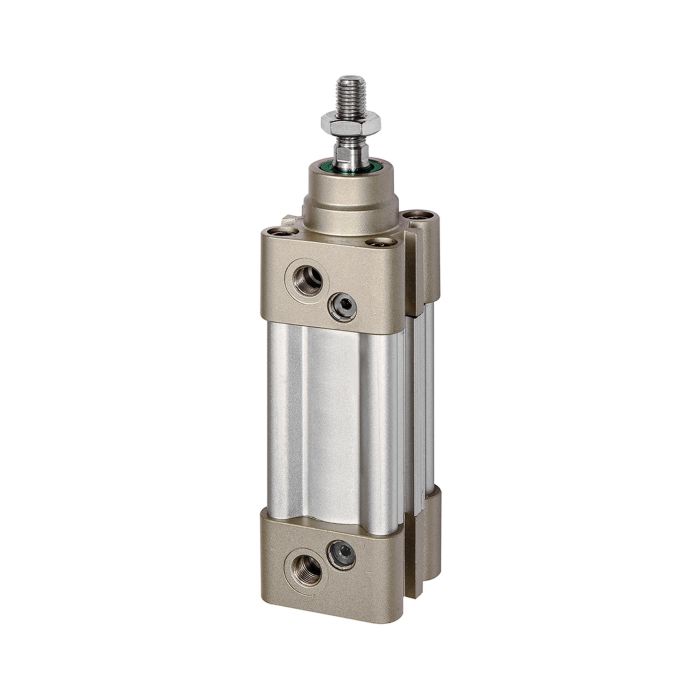

Exemplary illustration

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Productdata

Downloads

Variants

accessories

Spareparts

Productdata

Standard cylinder SAI, ISO 15552, double-acting, Piston Ø 32, Stroke 175, G 1/8, Working pressure 1.5-10 bar, Temp. -20°C to 70°C

These cylinders are ideal for a wide range of applications owing to their robust design and ecxellent value for money.

The standard type has a double-acting cylinder and features a magnetic piston as well as integrated cushioning.

The magnetic switches are mounted in T-slots on two sides of the body.

Suitable for filtered, unlubricated or lubricated compressed air.

If lubrication is used, it must be continuous.

Article No.

170580

Min. temperature range

-20 °C

Max. temperature range

70 °C

Sealant

NBR (O-rings)

Min. working pressure

1.5 bar

Max. working pressure

10 bar

Jacket

Aluminium jacket with integrated T-slots

Piston rod gasket

TPU (thermoplastic polyurethane)

Piston gasket

TPU (thermoplastic polyurethane)

Piston Ø

32 mm

Function

double-acting

Stroke

175 mm

Piston rod ET

M10x1.25

Piston rod-Ø

12 mm

Connection

G 1/8

Piston rod

Steel, thick-chromed

Piston

aluminium

Magnet

with magnet

Standard

acc. to ISO 15552

Cushioning

cushioned

Piston rod thread

male piston rod

Downloads

Operating instructions

18-12-A_e

Variants

Art. No.	Type No.	Attributes	Piston Ø	Stroke	Piston rod ET	Connection	Availability
170572	16.DMD.32025	32	25	M10x1.25	G 1/8	You can see the exact availability after logging in	€70.08 List price: €70.08 / piece Your price: €70.08 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€70.08 / piece) excl. VAT and shipping You can see the exact availability after logging in
170573	16.DMD.32050	32	50	M10x1.25	G 1/8	You can see the exact availability after logging in	€72.19 List price: €72.19 / piece Your price: €72.19 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€72.19 / piece) excl. VAT and shipping You can see the exact availability after logging in
170574	16.DMD.32075	32	75	M10x1.25	G 1/8	You can see the exact availability after logging in	€74.19 List price: €74.19 / piece Your price: €74.19 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€74.19 / piece) excl. VAT and shipping You can see the exact availability after logging in
170575	16.DMD.32080	32	80	M10x1.25	G 1/8	You can see the exact availability after logging in	€76.04 List price: €76.04 / piece Your price: €76.04 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€76.04 / piece) excl. VAT and shipping You can see the exact availability after logging in
170576	16.DMD.32100	32	100	M10x1.25	G 1/8	You can see the exact availability after logging in	€76.04 List price: €76.04 / piece Your price: €76.04 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€76.04 / piece) excl. VAT and shipping You can see the exact availability after logging in
170577	16.DMD.32125	32	125	M10x1.25	G 1/8	You can see the exact availability after logging in	€78.16 List price: €78.16 / piece Your price: €78.16 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€78.16 / piece) excl. VAT and shipping You can see the exact availability after logging in
170578	16.DMD.32150	32	150	M10x1.25	G 1/8	You can see the exact availability after logging in	€80.14 List price: €80.14 / piece Your price: €80.14 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€80.14 / piece) excl. VAT and shipping You can see the exact availability after logging in
170579	16.DMD.32160	32	160	M10x1.25	G 1/8	You can see the exact availability after logging in	€82.00 List price: €82.00 / piece Your price: €82.00 / piece ERP-Info Scale of prices Quantity Price / Sales info Price unit: Quantity unit: piece Content: piece (€82.00 / piece) excl. VAT and shipping You can see the exact availability after logging in
